Position: Home > Products > Crucible > Specifications & Dimensions

Products Category

GMG-GOV

GMG Stamelt、 GMG Purmelt、 GMG Kunmelt、 GMG Sinmelt ISO pressed crucible

400-668-3908 Inquiry
Detail

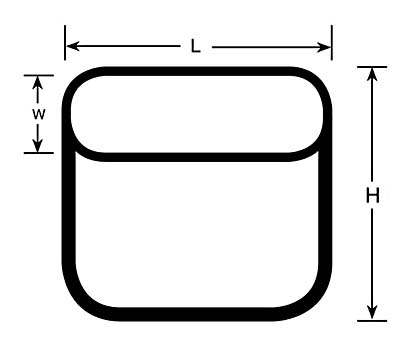

Form GOV

PatternL/mmH/mmW/mmWater brimful capacity (L)Aluminum liquid capacity(Kg)
GOV700L78078078052097223
GOV950L837837950540125287
GOV1160L9509501160580142326
GOV1190L9509501190520168386
GOV1200L8388381200548142326
GOV1560L108010801560487171392
GOV1580L8488481580468205470
GOV1820L9759751820640232532
GOV1900L8508501900560238546
GOV2000L126012602000630230528
GOV2050L105410542050479167383
GOV2100L106310632100488187429
GOV2110L108010802110505231530
GOV2240L127112712240671290666
GOV2570L127612762570676332762
GOV2640L113011302640715354812
GOV2690L105810582690833375861
GOV2761L127912792761679358822
GOV3160L106310633160838435998
GOV3800L1070107038008455251205
GOV4750L1080108047508556551503



Other dimensions on request

Contact us now to customize your exclusive sulution
