GMG-GN

GMG Stamelt、 GMG Purmelt、 GMG Kunmelt、 GMG Sinmelt ISO pressed crucible

400-668-3908 Inquiry
Detail

Form GN

PatternD/mmH/mmd/mmWater brimful capacity (L)Molten Aluminum  capacity(Kg)
GN 1053404001851534
GN 20053060032573167
GN 205 H66055066032585196
GN 300622700330120275
GN 300 H865622865330145332
GN 510740910295228523
GN 500775750310233535
GN 600785900350282647
GN 800 H10208501020350408936
GN 8008681000350383879

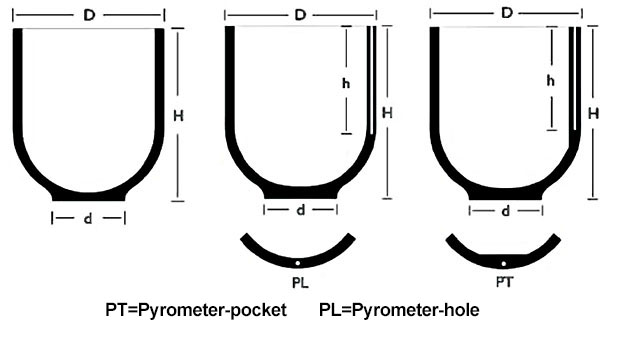

Product shape GN is available with or without Pyrometer-pocket / Pyrometer-hole

Other dimensions on request


Contact us now to customize your exclusive sulution
