GMG-GA

GMG Stamelt、 GMG Purmelt、 GMG Kunmelt、 GMG Sinmelt ISO pressed crucible

400-668-3908 Inquiry
Detail

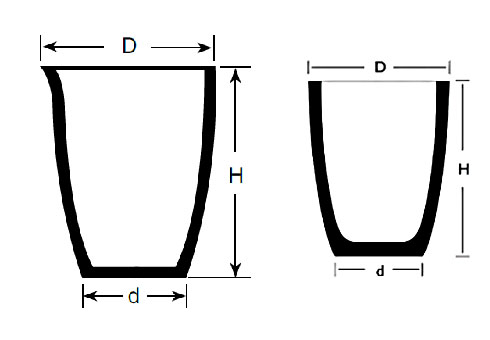

GA

PatternD/mmH/mmd/mmWater brimful capacity (L)Molten Aluminum  capacity(Kg)(Kg）
GA 385106600.250.6
GA 5120140800.61.4
GA 9140175901.33.0
GA 342002551304.5210
GA 352252001603.48
GA 402152501604.410
GA 6028137018611.526
GA 80 H4053204052251432
GA 3703705602202762
GA 450 H50045450027039.290
GA 560 H66548066532063145
GA 655 H11004801100270125287
GA 800 H810550810280104.6240

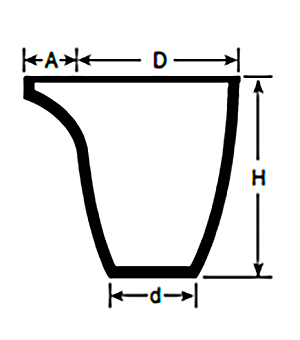

TGA

PatternD/mmH/mmd/mmWater brimfulcapacity (L)Molten Aluminum  capacity(Kg)
TGA 4111130670.20.5
TGA 6137176880.92.1
TGA 71551701151.22.8
TGA 81521721031.33.0
TGA 91531741091.43.2
TGA 101552051101.63.7
TGA 1618522112736.9
TGA 35250300180716
TGA 40265325180818
TGA 60285345147921
TGA 702813642037.517
TGA 722813641508.520
TGA 8030537521512.529
TGA 12034541024518.542
TGA 1503454502201739
TGA 60555071028060138



Other dimensions on request

Contact us now to customize your exclusive sulution
