Key Benefits

     ✔Excellent anti-slag adhesion performance

     ✔Efficient thermal conductivity for rapid melting and higher production capacity

     ✔High thermal shock resistance, high strength and wide compatibility

Application & Specifications

    ✔Application: Melting and holding all types of non-ferrous metals; compatible with gas furnaces, oil-fired furnaces, medium/high frequency induction furnaces and other mainstream furnace equipment

     ✔Operating Temperature: 0℃ - 1400℃

     ✔Appearance: Equipped with black protective coating

     ✔Model Compatibility: Compatible with mainstream GMG crucible models

     ✔Customization: Optional thermocouple pocket; customized spouts in various shapes and sizes available

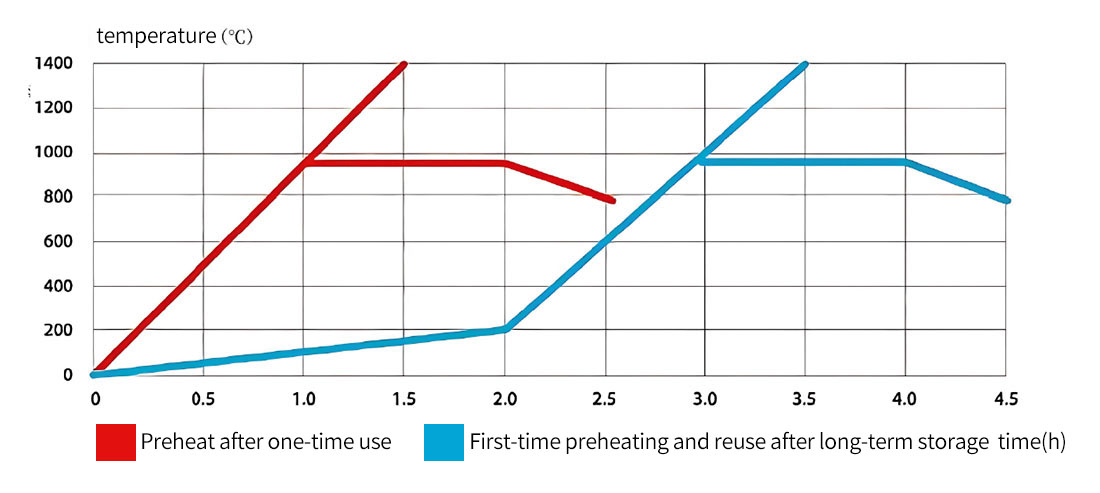

Heating recommendations for Carbon-bonded Crucibles

The crucible after installation in the furnace should be heated up slowly to a temperature of 200°C (392°F) over a period of 2 hours, to eliminate any moisture that may be present. Next, these crucibles should be heated up to a temperature of 950°C (1742°F) on full power, if possible.

Silicon Carbide crucibles used in a melting operation can be continuously heated up on full power until working temperature is reached. The crucible is then ready to be charged with care.

When using Silicon Carbide crucibles for holding, the temperature of 950°C (1742°F) should be reached and held for approximately one hour. This ensures even melting of the glaze with the additional antioxidation coating, which is essential to achieve the maximum possible crucible life.
